Technical Drawings & 2D Design in Chichester, West Sussex

At Chalkpit Design in Chichester, West Sussex, we specialise in technical drawings and 2D design to ensure clear, precise communication of engineering and fabrication requirements. Using professional CAD workflows, we create detailed schematics, assembly diagrams, and production-ready 2D files. We can produce DXF files and other industry-standard formats for laser cutting, CNC machining, or manufacturing, bridging the gap between concept and production with accuracy and efficiency.

Benefits of Technical Drawings & 2D Design with Chalkpit:

• Clear Communication: Convey complex designs precisely to engineers, fabricators, and clients.

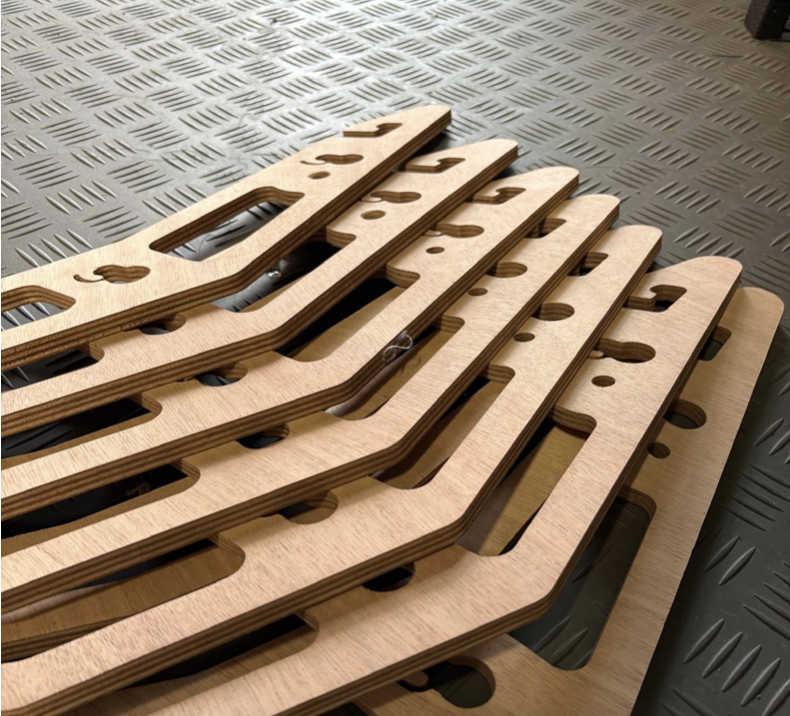

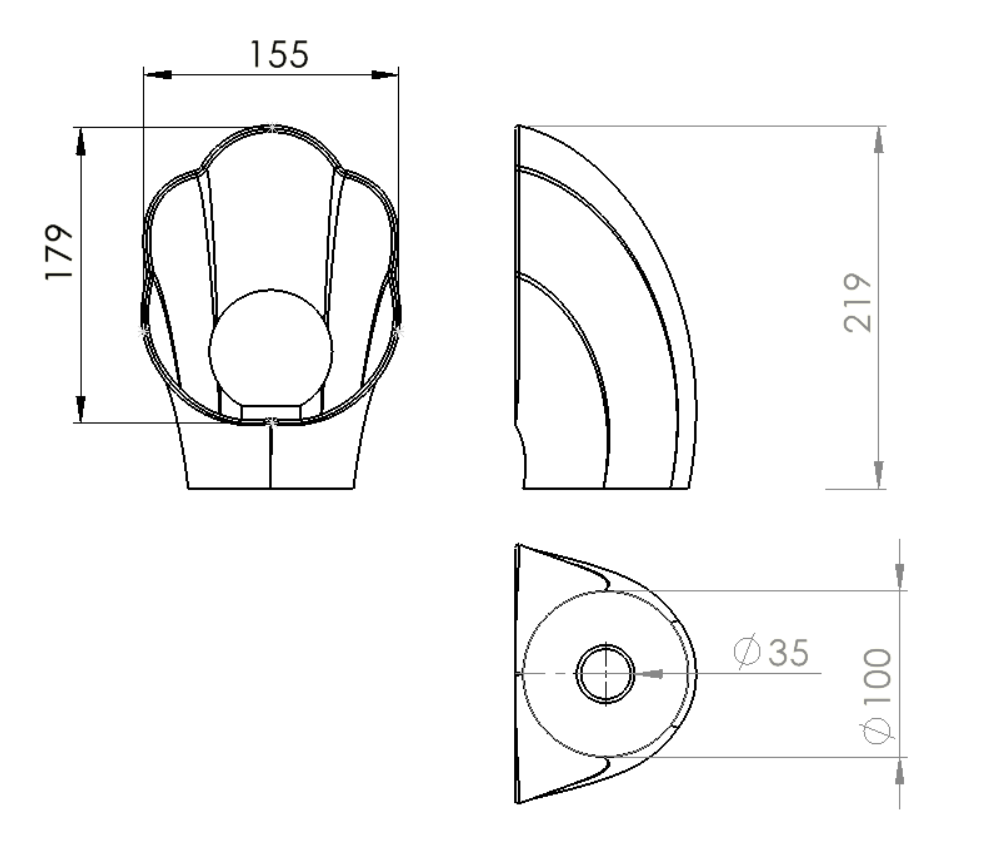

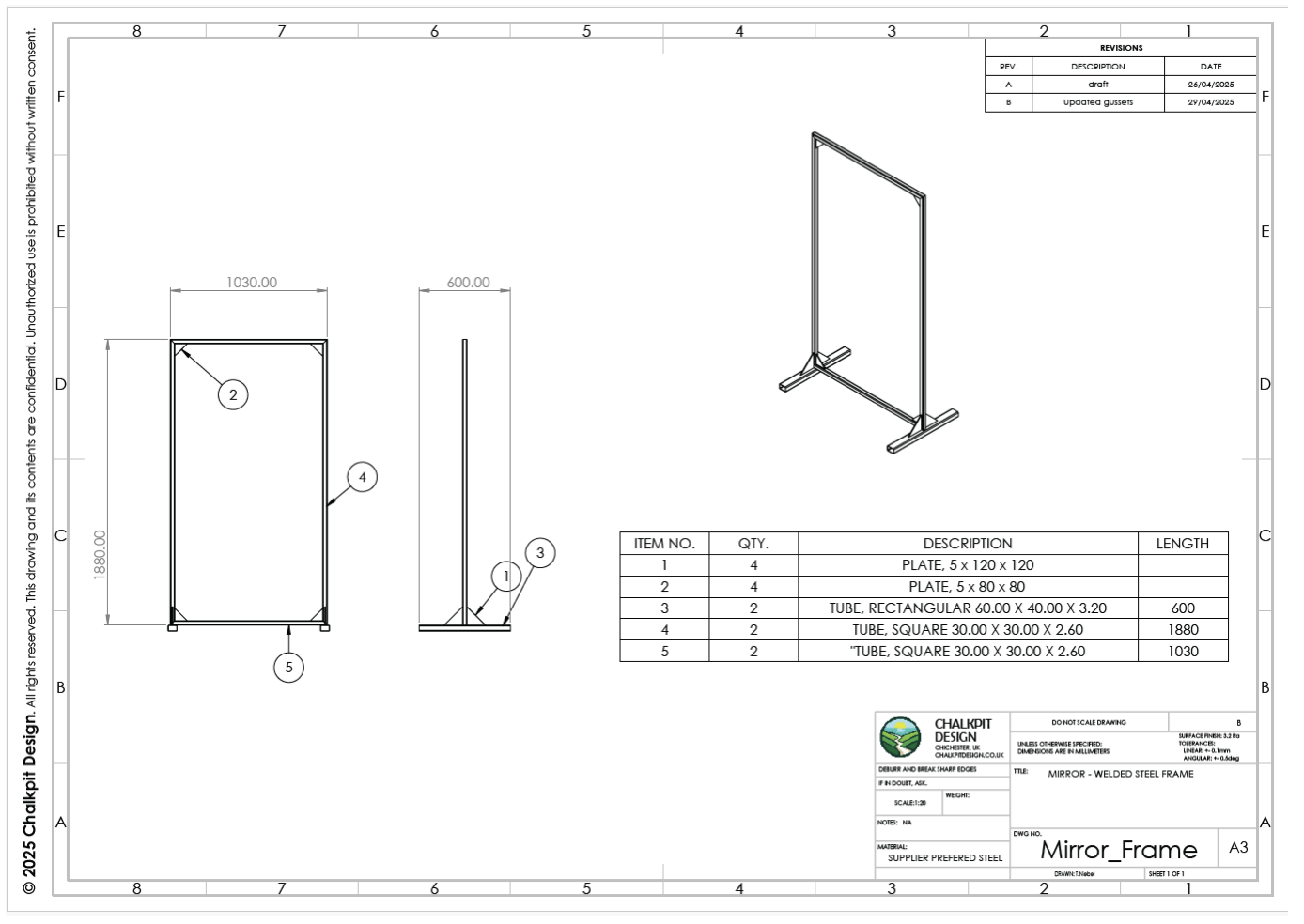

• Manufacture-Ready Files: Produce DXF, DWG, and other standard formats for seamless fabrication.

• Accuracy & Precision: Minimise errors and misinterpretation during production.

• Integration with 3D Workflows: Complement 3D printing, scanning, and CAD design for end-to-end solutions.

• Efficiency: Reduce iteration time and simplify production planning.

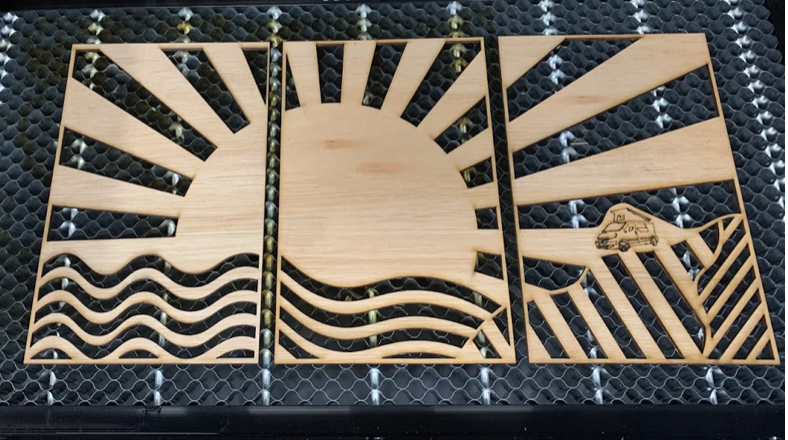

• Customisation: Tailored drawings for bespoke projects, parts, or assemblies.

• Sustainability: Digitally validate and optimise designs before physical production.

• Local Expertise: All technical drawings produced in Chichester, supporting precise, high-quality local manufacturing.
